PRESONUS STUDIO 24C
SCHEDA AUDIO
PRESONUS STUDIO 24C
SCHEDA AUDIO
PRESONUS STUDIO 24C
SCHEDA AUDIO
CARATTERISTICHE TECNICHE:

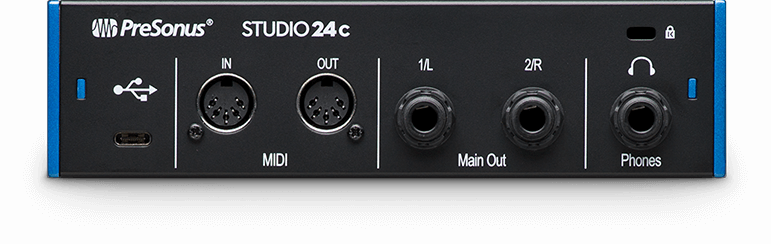

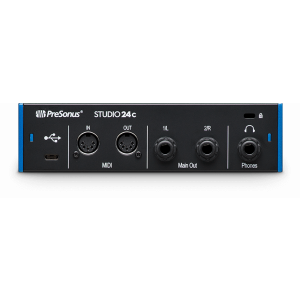

INPUT/OUTPUT
Simultaneous I/O up to 2 inputs/2 outputs
2 mic/instrument/line inputs with XMAX-L mic preamps
2 balanced ¼” TRS main outputs
1 stereo headphone output
MIDI In/Out

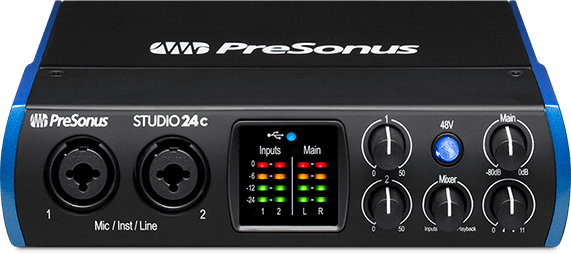

METERS, CONTROLS, AND FEATURES
Mixer knob for low-latency direct input monitoring
Front-panel level controls for main outputs
+48V phantom power for condenser microphones (global)
4 ladder-style LED level meters (2 input, 2 main output)
INTEGRATED SOFTWARE
Studio One Artist®
Studio Magic Plug-in Suite
DIGITAL
USB-C port (USB 2.0)
24-bit resolution
44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
PHYSICAL
Road-rugged construction with all-metal chassis and metal knobs
USB bus-powered
SPECIFICHE TECNICHE:
GENERAL
Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution 24 bit
ADC Converter Dynamic Range 108 dB
DAC Converter Dynamic Range 108 dB
MICROPHONE INPUTS
Maximum Level +10 dBu (±0.5 dBu, min gain)
Gain Range 50 dB
Frequency Response 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 106 dB (A-wtd, min gain)
THD + N 0.004% (1 kHz, -1 dBFS, min gain)
EIN -126 dBu (A-weighted, 150?, max gain)
Input Impedance 1.4 k?
Phantom Power +48 VDC (10 mA total)
INSTRUMENT INPUTS
Maximum Level +19 dBu (min gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range 105 dB (A-wtd, unity gain)
THD + N 0.002% (1 kHz, min gain)
Input Impedance 750 k?
MAIN OUTPUTS
Type
¼" TRS, Female
Maximum Level +10 dBu (1 kHz, unity gain, balanced)
Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range 104 dB (unity gain, unwtd)
THD + N 0.001% ( 1 kHz, -1 dBFS, unity gain)
HEADPHONE OUTPUTS
Maximum Power 47 mW / channel @ 56?
Frequency Response 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range 83 dB (A-wtd, 56? load)
THD + N 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range 32? to 300?
PHYSICAL
Height 1.75" (44 mm)
Width 7" (180 mm)
Depth 5.5" (144 mm)
Weight 2 lbs. (0.9 kg)
REQUISITI DI SISTEMA:
MAC
Mac® OS X 10.8.5 64-bit or later
Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
WINDOWS
Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
MAC AND WINDOWS SYSTEMS
USB-C or USB-A 2.0 port
32 GB hard disk space
PreSonus Universal Control 2.0 or higher
Monitor with 1366x768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation
